Micro Linear Actuators 12 Volt Screw Actuator

Posted at: Offers to Sell and Export | Posted on: Friday 1 April 2016 2:49 am | Poster last visit: Tuesday 25 December 2018 |

Product Category: Main » Manufacturing Components and Supplies » Pneumatic and hydraulic and electric control systems » Actuators » Linear actuators » Micro Linear Actuators 12 Volt Screw Actuator

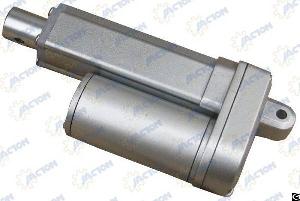

Product Photo:

micro linear actuators 12 volt screw actuator

Similar Products Catalog:
Products Photos Catalog Micro Linear Actuators Photos Catalog

Product Description:

Micro Linear Actuators 12 Volt Screw Actuator Features

1. Mini series


2. Small compact design

3. Low

noise design

4. Enhanced corrosion resistance

5. Aluminum outer and inter tube

6. Znic alloy housing

7. Powder metal gears

8. Lubrication for longer life

Micro Linear Actuators 12 Volt Screw Actuator Specifications

1. Input Voltage: 24V or 12V DC

2. Gear Ratio, Lifting Force, Travel Speed

* 5:1, 20KG, 45~75mm/min

* 10:1, 40KG, 22mm/min

* 20:1, 60KG, 12mm/min

* 30:1, 80KG, 8mm/min

3. Max. Static Force: 230KG

4. Stroke: 2" / 50mm, 4" / 100mm, 6" / 150mm, 8" / 200mm, 10" / 250mm, 12" / 300mm

5. Work Temperature: -26℃ ~ 65℃

6. Duty Cycle: 25% (function 2.5minutes in 10minutes)

7. Limited Switch: Inner, can not be adjusted after leave factory

8. IP Rating: IP65

9. Option Sensor: Potentiometer 10K/10round

10. Front and Rear Holes Dia.: 6.5mm (8mm special request)

11. Controller: Input 220V, output 24/12V, drive several actuator together



Company Contact:

No member photo
Contact Name: Worm-gear Screwjacks
Company Name: Jacton Industry Co., Ltd
Email: Email
Tel: 86(0)769 81585810
Fax: 86(0)769 81585852
Street Address: Building C, No.3078,
Garden Road, Xin An Community, Chang
An
Dongguan, Guangdong 523880
China
Website: http://www.jactonindustry.com/
Member name: jactonscrewjacks
Country: China-CN China
Member Since: 13 July 2015
Total Leads: 58 jactonscrewjacks Import Export Business Leads
Business focus: Machine Screw Jacks, Ball Screw Jacks, Bevel Gearboxes, Screw Jacks Lifting Systems
