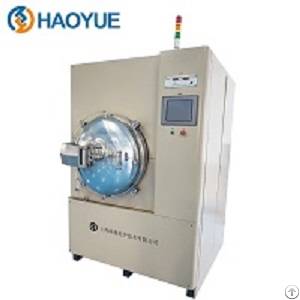

Multifunctional Furnace For Vacuum Hot Pressing Sintering
Posted at: Offers to Sell and Export | Posted on: Monday 28 July 2025 8:09 am | Poster last visit: Monday 28 July 2025 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Heating and ventilation and air circulation
» Heating equipment and parts and accessories
» Furnaces
» Multifunctional Furnace For Vacuum Hot Pressing Sintering
Product Description:
1.The furnace body adopts the circular vacuum tank design, all of which is made of stainless steel and
corrosion resistant.
2.The design of the circular vacuum furnace ensures good air tightness of the chamber and has high pressure resistance.
3.Furnace material is made of high-quality poly-crystalline alumina fiber by vacuum adsorption, saving 50% energy and has a uniform temperature field.
4.Advanced automatic control and reliable safety interlock: Adopt computer to realize automatic control of temperature and action process, PLC safety interlock. It has sound and light alarm and interlock function such as over-pressure and over-temperature.
Specifications
Multifunctional Furnace for Vacuum Hot Pressing Sintering
Model VHPgr- 20/ 20/ 30-1600 (P2-16)
Equipment Form Horizontal
Loading method Horizontal side loading
Heating Element Graphite Plate
Max.Temperature 1600℃
Working Temperature 1500℃
Max.Power 30KW
Max.Vacuum 6.7 × 10 - 3Pa（6.7 × 10-5 torr）
Temperature Accuracy ±1℃
Temperature uniformity ±5℃
Thermocouple B-Type
Pressure Rise Rate ≤2.0 Pa/h
Gases Nitrogen, Argon
Cooling Water Requirement Water pressure: 0.2~ 0.3MPa, water flow: 5m3/ h
Power Requirement Three-phase / 380V;
Total power: 50KVA (including vacuum furnace power, vacuum generator power, cooling water power, etc.)
Technical parameters of hot pressing sintering (the use of vacuum hot pressing)
Max.Pressure 196KN（20Ton）
Maximum Outside Diameter of Mold φ160 x 160mm（D x H）
Product Diameter ≤ φ80mm
Diameter of metal head φ 85mm
Max Displacement 100mm
Pressing Direction Single way pressurization ( bottom )
Technical parameters of vacuum sintering (the use of vacuum sintering)
Maximum Heat Area Size 200x 200x 300mm（W x H x L）
Effective Zone 160x 160x 160mm（W x HxL）
Burnt Plate Size 160x 160mm（W x L）
Equipment External Dimensions 1500x 2000x 1500mm (W x H x L)
Equipment Weight 1.78Ton
Company Contact:
Contact Name: Eric
Company Name: Shanghai Haoyue Technology Co., Ltd.
Email:
Tel: 02151095281
Fax:
Street Address: Nbuilding B2, 7301
Jiasong North Road, Jiading District
Shanghai, Shanghai 201804
China
Website: https://www.haoyuefurnace.com/
Member name: haoyue
Country:
China
Member Since: 28 July 2025
Total Leads: 5 haoyue Import Export Business Leads
Business focus: Vacuum Sintering Furnace, Vacuum Atmosphere Furnace, Tube Furnace
Chat:
Verify: Safe Import Export Tips
