Open Mesh Grating
Posted at: Offers to Sell and Export | Posted on: Friday 11 March 2022 7:28 am | Poster last visit: Friday 11 March 2022 |
Product Category: Main
» Structures and Building and Construction and Manufacturing Components and Supplies
» Structural components and basic shapes
» Grating
» Steel grating
» Open Mesh Grating
Product Description:

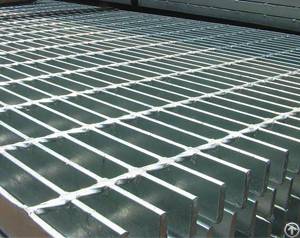

Open Mesh Grating
The open mesh steel grating is a flat panel durable metal grate made from carbon steel
or stainless steel with a light structure firmly welded together. It is widely used for industrial ladders, decking safety, ventilation ceilings and floors, platform and stair tread protection panels. The open spacing design instead of solid metals allows good ventilation, and easy flow of lighting and heat. The standard sheet size is 1m x 6m standard type (special size and American standard size are also customizable).
Open steel floor grating, the most strong and durable metal grating products. They are made from the mild carbon steel or stainless steel.
Mostly Used Specifications of Steel Mesh Gratings from our customers:
1) Bearing Bar (Load Bar) Specifications (mm): The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center): 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available.
3) Material: Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment: Mill finish untreated, Painting or Hot DIP Galvanizing
Mesh gratings are popular due to the following features:
1. High strength and light structure
2. Powerful anti-corrosion, durable and long working life
3. Beautiful appearance, bright surface
4. No dirt-rain-snow deposit, automatic cleaning, easy maintenance
5. Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion.
6. Easy installation and disassembly
Quality Standard Qindelin follows in production:
Steel Grating Standard: China YB/T4001-1998
America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987
Australia AS1657-1992
Steel Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)
Hot Dip Galvanizing Standard: China GB/T13912-92 / ASTM (A123) / BS729
