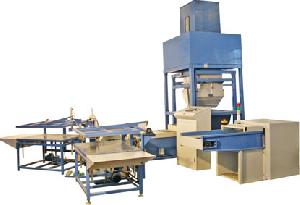

Pillow & cushion automatic weighing & filling line
Pillow & cushion automatic weighing &
filling line concludes 4 parts
BC1001-790 + BC503 + BC1028 + BC502-2
MODEL: FIBER CARDING MACHFINE BC1001-790
NET WEIGHT: 800KG
MODEL: FAN FEEDING BC503
NET WEIGHT: 75KG
MODEL: WEIGHING SYSTEM BC1028
NET WEIGHT: 1500KG
Two heads filling machine with patting devices BC502-2.
Two heads filling machine: Dimensions: 1200X900X1300mm
Net weight: 150kg
Patting devices: Dimension: 1320X970X900mm (each/pcs) total two pcs
Net weight: 70kg/pcs
Whole line capacity: 160kg/hour
The system can realize fiber carding, accurate weighing and high speed filling.
High technology: Having the most advanced weighing system, the operator can set the fiber weight with touch screen panel, fully automatic and accurate. The handling weight: 150g-1500g.
More safety: The fiber carding machine has metal detector and overloading alarm system to avoid the machine being damaged.
Cost-saving: Place an additional bale opening machine, it only needs one person to run the whole line. Two heads filling machine with patting devices ensure the high speed and top-quality filling.
