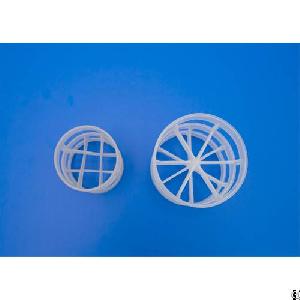

Plastic Pall Ring
Plastic Pall Rings Packing, Plastic Pall Rings Manufacturer
Parameters of Plastic pall ring
Model SizeD*H*δ/mm No. Per Volumen/m3 Specific Aream2/m3 Void Volume% Drying Packing Factorm-1
Dg16 16X16X1.0 180000 188 91.1 275
Dg25 25X25X1.2 49000 175 90.0 239
Dg38 38X38X1.4 13600 155 89.0 220
Dg50 50X50X1.5 6300 93 90.0 127
Dg76 76X76X2.6 1830 73.2 92.0 94
Dg100 100X100X3 880 72 90.0 92
Pall Ring, the structure improve distribution of gas-liquid and its efficiency can be improved above 50%, and only has half of pressure drop compared with Raschig ring.
Features: Pall ring has some advantages, such as lower pressure drop, big flux, high efficiency, which HYPAK packing has better efficiency and lower pressure drop and better distribution of liquid compared with common pall ring.
Application: It can be applied to various of device of isolation, absorption, desorption, common decompression such as toluene separation, ethylbenzene separation, isooctane separation and desulfurization system and so on.
Materials: PP, PE, RPP, PVC, CPVC, PVDF, etc
