Polarized Stress Meter For Pet Preform Psv-801

Posted at: Offers to Sell and Export | Posted on: Thursday 25 February 2021 12:49 am | Poster last visit: Wednesday 22 September 2021 |

Product Category: Main » Laboratory and Measuring and Observing and Testing Equipment » Measuring and observing and testing instruments » Light and wave generating and measuring equipment » Polariscopes » Polarized Stress Meter For Pet Preform Psv-801


Product Photo:

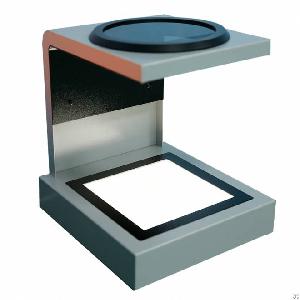

polarized stress meter pet preform psv 801

Similar Products Catalog:
Products Photos Catalog Polarized Stress Meter Photos Catalog

Product Description:

Specifications :

Viewing field: 200* 200 mm


Overall size: 300*335*330 mm

Main voltage:220 V AC

Measuring

space height : 234.5 mm

Light source: LED ( White and Sodium light)

Gross Weight : 10KG

Packed in 1 carton : 45*45*32cm

Application area

This Polariscope is designed to observe and analyze the distribution of internal strain in transparent plastic preforms.

It has been widely used in the quality control of various plastic rough processing products and finished bottles.

Features

1.Defects invisible to the naked eyes such as crystallization or other common defects become visible ;

2.When the plastic preform is placed on the Polarizer at a 45° angle, the colored birefringent stripes at the edge of the preform can be observed;

3.When the plastic preform is placed on the polarizer at a 0°or 90° angle, black birefringence stripes in the central part of the preform will be displayed;

4. In addition to white light, Sodium light is also used to test colored preforms or finished bottles;

5. Besides, this Strain Viewer provides 12 kinds of defect analysis functions.

12 kinds of colored defect comparison pictures will be attached to instruct related improvements in preform production process.
