Pvc Pipe Making Machine

Posted at: Offers to Sell and Export | Posted on: Monday 22 February 2016 5:36 am | Poster last visit: Sunday 9 October 2016 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Industrial process machinery and equipment and supplies » Rubber and plastic processing machinery and equipment and supplies » Extruders » Pvc Pipe Making Machine


Product Photo:

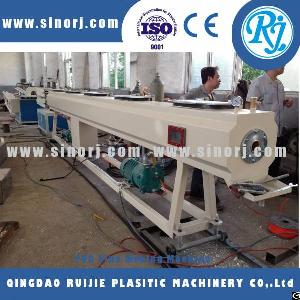

pvc pipe machine

Similar Products Catalog:
Products Photos Catalog Pvc Pipe Machine Photos Catalog

Product Description:

PVC Pipe Making Machine

Description


Raw material: PVC resin+ other ingredients

Final Products: PVC

water/sewage pipe

Pipe Diameter: 16-630mm



Main Electricity Brand:

Main Motor: famous brand in china

Frequency control: ABB

Bearing : NSK, Japan

Contactor: Simens



Power and Size of Production line:

Total Production line: 25-30m

Power consumption of the production line(actually): 60-100kw



Advantage of PVC pipe machine:

1.Advanced design of screws supply powerful safeguard for the PVC plasticization.

2.Unique inside oil controlling temperature system adapts different technology.

3.Beautiful and practical stainless steel body for vacuum calibration and cooling units, unique multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency;

4.Hauling off unit adopts particular pedrail structure, which is easy and convenient to operation; Pedrial clamping uses mechanical and pneumatic combining system, which is more reliable in performance

5.Cutting system adopts saw blades and planetary cutting means; Sumping used hydraulic system, which ensures the smooth cross section



Model Screwdiameter L/D Piperange Capacity Mainmotorpower Totalpower Linelength

U-pvc63 51/105 14.5:1 16-63 80-120 18.5 50 22

U-pvc160 65/132 14.5:1 75-160 200-250 37 100 22

U-pvc250 65/132 14.5:1 110-250 200-250 37 120 30

U-pvc315 80/156 15.25:1 160-315 300-400 55 200 30

U-pvc450 80/156 15.25:1 200-450 300-400 55 220 36

U-pvc630 92/188 17.86:1 315-630 400-800 90 350 42

Configuration

1 Auto loader 1 set

2 SJSZ65/132 twin screw extruder 1 set

3 Pipe moulds 1 set

4 Vacuum calibrating tank 1 set

5 Haul off 1 set

6 Cutter 1 set

7 Stacker 1 set
