Pyramid Mesh Fence

Posted at: Offers to Sell and Export | Posted on: Fri 05 Jan, 2018 2:51 am | Product Category: Adjustable fence [30]

pyramid mesh fence
Products Photos CatalogPyramid Mesh Fence Photos Catalog



Pyramid Mesh Fence

Height:886-1886mm


Width:2015mm

Wire:6+5+6mm, 8+6+8mm(popular)

Mesh:50×200mm(popular)

Surface:Hot

dipped galvanized&Powder coating/PVC coating

Other size are available

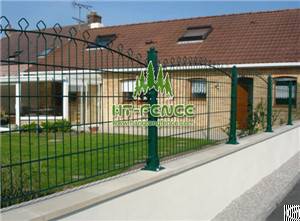

This decorative pyramid mesh fence is very popular in the Middle East. This decorative pyramid fencing is made of high quality rod steel, Double horizontal wire welded to vertical wire, The panel became more flate and strong. Unique and beautiful PYRAMID design. The panel features twin 8mm&6mm wires welded either side of 6mm&5mm vertical wires, giving would-be intruders little chance of breaking through. It is made of high quality low carbon steel wire, galvanized wire. Then will be hot dipped galvanized, powder coated or pvc coated. It looks modern and attractive. Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.

The height are available in a range of heights from 886mm till 1886 mm and panels head PYRAMID design.

Pyramid Mesh Fence, Mesh Panel Fencing, Airport Security Fence Manufacturer China

The popular wire diameter are 6+5+6mm and 8+6+8mm, mesh holes are 50×200mm, others are available.

Posts are manufactured from steel tubular section with threaded inserts for fixing the steel mesh clips.  Additional fixings are provided to accommodate stepping of panels where the fence is installed on a gradient.

The general post section are 60×60mm, others are available.

HT-Fence welded wire panel fence is manufactured from galvanised material, powder coated and pvc coated.  The popular color is Green RAL 6005 .If others color is required, we're easily able to provide this.All of our fence power from AKZONOBEL Company.

Pyramid mesh fence Features

●Mesh sizes are 200x50mm with 1x6mm&1x5mm vertical and 2x8mm&2x6mm horizontal wire.

●Posts can be concreted in, base placed, cranked, face fixed or vertically extended.

●System is easy to install and can be stepped, helping the fence line follow the contours of the ground.

●The system can be supplied complete with gates to suit.

Pyramid mesh fence Advantage

●High security fence, anti-climb and anti-cut

●Flat panel that gives improved aesthetic appearance

●Maximum strength and security, High levels of rigidity

●Excellent through vision

●Pyramid head design

Pyramid mesh fence Application

It is often used in villa, park, industrial plants, garden, isulated of road, school, station, residence community, etc.

Panel Size Post

Panel height Panel Width Wire Mesh Holes Height(mm) Post Section

886mm 2.015m 5+5+5mm

6+5+6mm

8+6+8mm 50×200mm 1300 60×60mm

75×75mm

80×80mm

1086mm 2.015m 1600

1286mm 2.015m 1700

1486mm 2.015m 1900

1686mm 2.015m 2100

1886mm 2.015m 2400

Above are general specification, others are available.

Temporary Fence, Temporary F Chain For Sale, Temporary Chain Link Fence For Sale

Panel wire:Q195&Q235 Low carbon wire

Post:Q235, 345 Steel tube

Panel wire and post material used hot dipped galvanized material, Or black materral

Bolts:M8 anti-vandal steel or stainless steel

Surface:Galvanised or galvanised then powder coated&pvc coated fininshed

Steel grade can be chose.

Powder from AKZONOBEL

Delivery Terms:FOB, CIF

Payment Currency:USD, EUR, AUD, JPY, CAD, GBP, CNY

Payment Item:T/T, L/C, PayPal, Escrow

Nearest Port:Xingang port, Qingdao port

Delivery Time:General after 25days upon received T/T30% advance payment

Popular Payment detail: T/T 30% in advance as deposit, the balance against received the copy of B/L.
