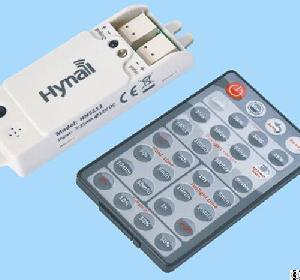

Remote Control DC Input Motion Sensor
Motion Sensor Module DC Input
5V/12V DC Input Microwave Motion
Sensor – Remote Controllable Version
5.8GHz C-band microwave, tri-level dimming control.
Input voltage 12V DC (5V & 24V DC version available on request).
0~10V DC output signal.
Super compact, flexible to be integrated into any suitable fixtures.
Dual-PD technology, real Daylight monitoring function for built-in application.
IR remote commissioning, easy setting and user friendly.
Detection range up to 12m in diameter.
Mounting height: 3~6m.
Operation temperature: -20°C~ +70°C.
Settings(Remote control IR12)
Permanent ON/OFF function
Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.
*press "Auto", "Reset" or "Ambient learn" to quit this mode.
Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.
*after desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” button again and then lock down the new brightness again.
Press "Auto" button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
Press "Reset" button, all settings go back to factory default settings.
Factory default settings－－
Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.
"Test mode" is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.
Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordingly.
*Test mode defaulted settings—
In this mode, when used for on/off control, after motion detected, sensor enters into a cycle of 3s on and 2s off. In this mode, when used for tri-level dimming control, after motion detected, sensor enters into a cycle of 3s on and 2s off(0.5s soft off + 1.5s off).
More information please view here.
