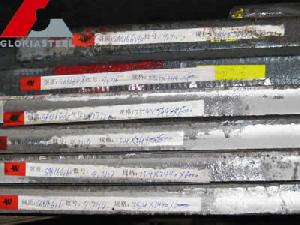

Sa516gr60 Hic Pressure Vessel Plates
Posted at: Offers to Sell and Export | Posted on: Monday 22 August 2011 1:40 pm | Poster last visit: Thursday 8 September 2011 |
Product Description:
SA516Gr60+N, produce according to A 516/A 516M - 03, carbon steel plates intended primarily for service
in welded pressure vessels where improved notch toughness is important, manufacture low pressure polyethylene reactor.
Other grade:SA516Gr60+HIC, SA516Gr70(HIC)Tested Plates acc. to NACE TM0284
HIC, adopting standards:NACE TM-0284
1.Thickness*width*length:8-320mm*1500-3900mm*3000-18000mm
2.Adopting standards:A 516/A 516M-03
3.General Requirements for Pressure Vessels:ASME SA20/20M
4.Supplied in the as-rolled condition:as-rolled or Normalized
5.Chemical composition:Gr60:
C=<0.25, P=<0.035, S=<0.035, Mn=0.85-1.20, Si=0.15-0.40
6.Mechanical property:Yield strength>=220MPa, Tensile strength>= 415-550MPa, Elongation in 2 in. [50mm], min, %>=25%
7.Ultrasonic test: ASTM435/A435M-90 or S12(ASTM A578M-96)
8.Delivery time:30-60 days
9.Payment term:T/T or L/C
10.Minimal order:1 pcs
Supplementary requirements:
S1. Vacuum Treatment, S2. Product Analysis, S3. Simulated Post-Weld Heat Treatment of Mechanical Test Coupons, S4.1 Additional Tension Test, S5. Charpy V-Notch Impact Test, S6. Drop Weight Test, S7. High-Temperature Tension Test.
S9. Magnetic Particle Examination, S17. Vacuum Carbon-Deoxidized Steel.
More technology details and the MTC sample please visit our web site
Company Contact:
Contact Name: Toby Tan
Company Name: Gloria Steel Limited
Email:
Tel: +86-15981802830
Fax: +86-769-86073079
Street Address: Xinyuan East Road,
Changan, Dongguan, Guangdong, China
Member name: tobytan
Country:
China
Member Since: 30 April 2011
Total Leads: 68 tobytan Import Export Business Leads
Business focus: Steel Plate, Mould Steel, Die Steel, Hot Work Tool Steel, Cold Work Tool Steel, High Speed Tool Steel
