Aluminium Foil Container Production Line
The frequency of this model is 40-70times
forming per minute. (The Speed depends on the container's complexity and size. ) We can make single cavity mould and multi-cavities mould. If the container is small, we can make a two-cavities mould or three-cavities mould...
This prodution line is composed of the followings(note1), 1. An auto-lubricated feeder(note2)
2. An eletronically controlled panel
3. A length controller

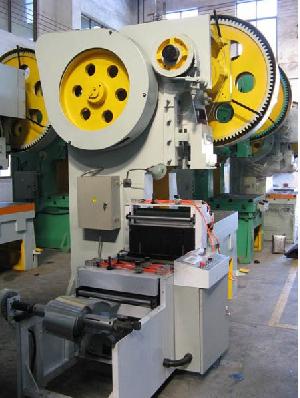

4. A 45T pneumatic punch
5. A set mould of food container which is vertical curl or full curl.
6. A automatic conveyor(with a carbore which can be filled the resting foil)
7. A collector of finished product
8. A machine which assist to change die
9. A machine which assist to change foil
1. The thickness range is 40-250micron
2. The width of foil feed system is 550mm. (basic model)
3. The lenth of feeding foil is controlled by computer. You can regulate the length form 20mm to 999mm.
4. As we can manufacture the machine according to the products's size as they required, the outer-appearance of the machine is different.
The procedure of production line:
Raw material: Aluminium foil-->auto-lubricated feeder-->length controller-->45-T precise presser--> mould-->collect container by hand (or auto-collector)-->packing.
