Product Description:

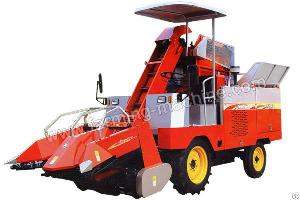

Two-row Self-propelled Corn Harvester Features
1. The harvester can reap two rows of corn and is a combine
harvester, realizing corncob picking, (stripping), conveying, assembling, uploading and straw smashing.
2. Corn picking and straw crushing can be done simultaneously, so no corn staw being flattened by wheels.
3. It is a post-open type corn harvester with multi-functions; the first choice for small corn plot harvesting.
4. Low labor intensity due to its fully hydraulic process of header lifting and corn discharging.
5. Reasonable structure with small turn radium, wide visual field for the driver, flexible operation.
6. Great adaptability, high durability, low power consumption, high efficiency, good performance, safe operation, easy maintenance and small investment.
7. This machine has won a leading position in domestic and abroad corn harvesting machinery field and can satisfy the requirements of different users.
Two-row Self-propelled Corn Harvester Technical Data
Model 4YZ-2
Type 4*2 Wheel tyre Self-propelled whole-feeding
Power 48 kw 65hp
Available row 2 rows
Row spacing 450-750 mm
Cutting width 1350 mm
Working Productivity 3-5 mu/h 0.2-0.34 Hectare/h
Oil consumption ≦30 kg/ Hectare
Grain tank 1.8 m3
Maximum Unloading grain height 1.4 m
Unloading grain Hydraulic, unloading in side
Minimum ground clearance 250mm
Cutting platform lift and down Hydraulic
Stubble height ≦80 mm
Raceme loss rate ≦1%
Grain broken rate ≦1%
Straw shredding qualification rate ≥90%
Shelling rate ≥95%
Total loss rate ≦3%
Dimension (L×W×H) 5300 x 1650 x 2850 mm
Weight 2500kg
Package 2 sets/40ft HQ
