slip on wedge wire screen stainless steel based perforated casing pipes for deep well:

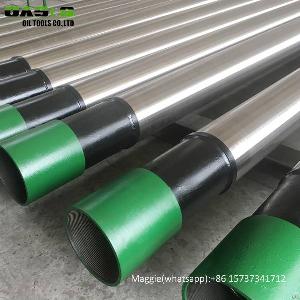

Pipe Based Screen
consists of a wire-wrapped jacket and a perforated pipe. Keystone shaped wire are helically wrapped around the vertical ribs and each point of contact is welded. This special shaped wire is designed for decreasing the chances of sand plugging the screen, self-cleaning action and reducing flow friction. The diameter and number of support rods depends on the strength and size the screen.
Pipe based screen is used in stand-alone completions with well sorted formulations or in combination with gravel packed completions. It provides superior strength & accurate slot openings. Compared with slotted liner, its larger inflow area maximizes the production.
Material for wire — stainless steel 304 316L and so on
Material for base pipe — upon request, API or ANSI pipe
Slot opening — from 200 micron up to 2000 micron
Casing pipe and open hole environments.
Suitable for gravel-pack and standalone operations.
Sand free production in vertical or horizontal wells.
Slot size: 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5 to 20mm also achieved upon request.
Material: Low-carbon steel, medium carbon steel, stainless steel (201, 304, 304L, 316, 316L, duplex stainless steel, 2205, 2207
Length: 30mm to 6000mm
Outer Diameter: 73mm to 600mm
Wedge Wire Specifications:0.75X1.5mm, 1X2mm, 1.5X2.5mm, 2X3mm, 2.3X4mm, 3X5mm, 3.5X6.5mm
End connection: Plain beveled ends, flanged or threaded couplings
