Super Machine Tool

Posted at: Offers to Sell and Export | Posted on: Tue 08 Oct, 2019 6:19 am | Product Category: Cutting machines [1344]

machine tool
Products Photos CatalogMachine Tool Photos Catalog

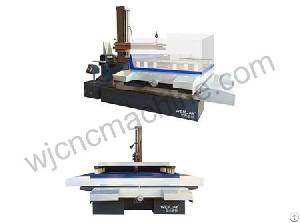

Super Machine Tool

cone machining CNC Machine Tool Description


Type Unit DK77120 DK77120B DK77120F

DK77160

Worktable Size (W*L) mm 1900×1310 2100×1310 2300×1310 2300×1670

X, Y-axis trip(Y×X) mm 1200×1600 1200×1800 1200×2000 1600×2000

U, V-axis trip(U×V) mm 70×70

Max load weight kg 4500 5500 6000 8000

Max linear cutting thickness mm 1000 1000mm(930) 1000mm(930) 1000mm(930)

Machined taper/work piece thickness 12°/80mm

Z-axis elevation mode Manual/electric elevation

Type of guide track Slide guide

Electrode wire diameter range mm Ф0.15~0.20mm

Wire speed m/sec 1~11.4m/sec 7 frequency conversion adjustable

Machining accuracy mm ≤0.015

Max cutting efficiency mm²/min ≥120

Optimum surface roughness um Ra≤2.5

Control mode X, Y, U, V stepper motor

Number of control axis Four-axis linkage

Min instruction unit mm 0.001

Power supply Super Machine Tool Three-phase four-wire 380VAC/50HZ

Max operating current A 12

Machine tool power consumption kw <2

Working fluid DX-1 DX-4 Nanguang-1

Working fluid tank volume L 55

Work liquid filtrate way Strainer

Host weight kg 8000 9000 10000 12000

Host outline size mm 4000×3100×2800 4000×3300×2800 4000×3500×2800 4500×3500×2800

More information can view Hifactory.



Company Contact:

No member photo
Contact Name: Mandy Chan
Company Name: Taizhou Wenjie Cnc Equipment Co., Ltd.
Email: Email
Tel: 86 523 86663100
Fax: 86 523 86665986
Street Address: No.28 Xingling Road,
Hailing Industrial Park
Taizhou, Jiangsu Province 225300
China
Website: https://www.wjcncmachine.com
Member name: wjcncmachine
Country: China-CN China
Member Since: 22 July 2019
Total Leads: 19 wjcncmachine Import Export Business Leads
Business focus: Medium Speed Wire Cutting Machine, Cnc Edm Wire Cutting Machine
