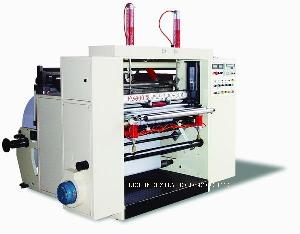

This machine is one professional machine with multifunction and manufactured utilizing Japanese
and widely used to process large paper roll into fax paper roll and all kinds of commercial
receipt small rolls such as ATM roll, electronic cash register roll,ticket roll ,etc. Different size of small roll
can be produced by using this machine.2- ply paper roll also can be processed by this series of
2-ply Paper Roll Slitter&Rewinder:
Model:RCHM-FQ500S-2P(color mark trace type)
Number of unwinding roll: 2 rolls
Max.Width of Unwinding: 500mm
Max.Dia Of unwinding:750mm
Min.width of slitting: 25mm
Diameter of unwinding paper core: 76mm(3inch)
Max.Dia of rewinding:80mm
Reference diameter of rewinding paper core: 12mm-32mm(availabe in custom diameter).
Max.Speed of slitting:100M/Min
Power supply: 3P 380V/50HZ
Air supply: compressed aire 0.6MPa
1.Mitsubishi PLC control system makes the preocess of marking precision and easily.
2.Touch screen makes operation simple and reliable.
3.Mul-fuction self-diagnosis system ensures the maintenance conveniently and rapidly.
4.Full-auto Mitsubishi tension control and detecting system ensures the high presion of slitting process.
5.Main control system adopts Mitsubishi electrical control system to ensure the safety and stabilization
Max.Diameterof unwinding paper:1000mm
Max.width of unwinding paper:500mm
Slitting method: upper and lower knife
Slitting power:1.5KW(added transducer)
Slitting pad:20 pcs for each 1.0mm/1.5mm
Paper stand:Air expansion shaft/air pressure type
Tension control and inspector:Mitsubishi
Rewining paper core diameter rang:12mm-38mm (available in custom-diameter)
Rewinding diameter range:30mm-180mm
Counter:1group *2 segment type
Automatic paper inserting:1 group*air pressure type
Operation:Mitsubishi PLC control system
Arc roller:3-5mm adjustable radian
>Color marking device:1set
Compressed air :0.6MPa
Features:Same as RCHM-FQ900-1P,It is mainly used to slit 1 ply and rewind the paper roll to thermal
other special size rolls.
Max. Unwinding width:900mm
Max. Diameter of unwinding: 1000mm
Min. Width of slitting: 25mm (or by request)
Diameter of paper core of unwinding:76mm
Max. Diameter of rewinding roll:200mm
Inner diameter of paper core of rewinding: 8mm-36mm (avaialbe in custom-diameter)
Max. Speed of slitting: 120m/min
Main power: 2.2kw
Power: 3P 380V/50HZ
Pneumatic system: compressed air 0.6MPa
Net weight: 1800kg
