Vartical Automatic Insulating Glass Production Line

Posted at: Offers to Sell and Export | Posted on: Sun 11 Oct, 2009 3:02 am |

Product Category: Main » Structures and Building and Construction and Manufacturing Components and Supplies » Doors and windows and glass » Glass products » Insulating glass » Vartical Automatic Insulating Glass Production Line

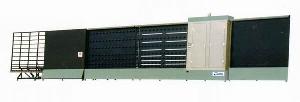

vartical insulating glass line
Products Photos CatalogVartical Insulating Photos Catalog



Features:

1.The main steel structure weldments adopts advanced vibration stress relief and


natural stress relief which release the interior stress of the material and the welding point at the most, which ensures the long-term mechanical precision.

2.The rinsing sector and water flow system all adopts stainless steel and rot-proof material and equipped with air-heating device.

3.Rinsing and drying station with air cushion is in favor of rinsing 3-12mm thick glass.

4.Washing brushes consists of nylon and a stainless axle. The hair is imported and heat-resistant in favor of the cleanness and surface protection for glass. The electric motor for brushes is controlled alone.

5.The machine adopts omni-range auto frequency conversion speed regulation. PLC control system saves waiting time and enhances the production efficiency.

6.This machine can keep washing continuously and discriminate the first and the second piece of glass with no waiting time.

7.It adopts low-voltage electric elements, sensors. The machine is under PLC control.

8.The efficiency of this machine is high and can identify LOW-E glass from the coated glass.

9.It can process triple insulating glass units.

10.It is equipped with vacuum generator and sucker which make glass suction perfect

11.The main spare parts of electric and pneumatic sectors adopt the famous brands home and abroad or the supplier with internationally recognized quality certification.

Technique parameter:

1.Max glass dimension: 25003000mm

2.Min glass dimension: 500350mm

3 Rinsing glass thickness: 315mm

4.Max insulating glass thickness:48mm

5.Rinsing speed: 28m/min

6.Brush:3 pairs

7.Transfer speed: Max25m/min

8.Compress air: flow rate0.8m3/min air pressure:1Mpa

9 Electric power: 38KW 3P 380V/ 50HZ

10. Water: water electric conductivity≤50us/cm

Water consumption: 0.5t/h



Company Contact:

tianmakitty photo
Contact Name: Tianmakitty
Company Name: Jinan Tianma Machine Building Co., Ltd
Email: Email
Tel: 86+531+13455101860 or 86-531-88671599
Fax: 86-531-88601158
Street Address: Beiyang Industrial
Park, Beiyuan Street, Jinan, China
Website: http://www.tmjq.com
Member name: tianmakitty
Country: China-CN China
Member Since: 11 October 2009
Total Leads: 22 tianmakitty Import Export Business Leads
Business focus: Aluminium Window, Door Machinery, Pvc Window, Door Machinery, Insualting Glass Machinery
