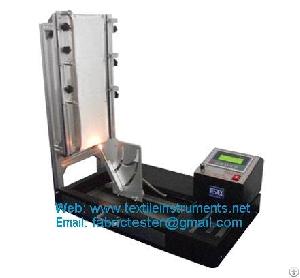

Vertical Flammability Tester
fabric vertical burn tester
Vertical Flammability Tester, to detect the
flammability of vertical oriented fabrics and wool or soft toy. Vertical flammability tester complies with ISO 6941, BS 5438, DIN 54335 etc.
Vertical Flammability Tester, to detect the flammability resistance of vertical oriented fabrics and wool or soft toy. Igniting manually is required, flame is self-extinguish.
Including electro valve, burner and micro switch operated trip threads. Including PLC controller, friendly interface and data analysis function.
Different accessories, igniters and configurations are required for different test standard. Please specify standard required.
Time Display and accuracy:0-999.9s, 0.1s
Burner size: different by standard requirements.
Timing: PLC controlled
System and Display: Programmable PLC system to control automatically, text display
Iso 6940/6941, din 54335/54336/66080
Power 220 /110V 50/60Hz 3A
Weight 40 Kg
Dimensions 700x600x1200 mm(LxWxH)
