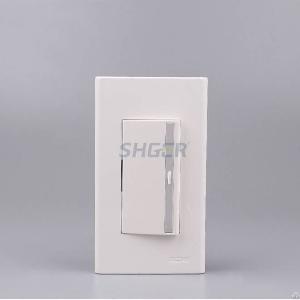

Wd501 120 Size 1 Gang Lighting Switch
Posted at: Offers to Sell and Export | Posted on: Tuesday 8 April 2025 5:47 am | Poster last visit: Tuesday 8 April 2025 |
Product Category: Main
» Tools and General Machinery
» Hand tools
» Wrenches and drivers
» Sockets
» Wd501 120 Size 1 Gang Lighting Switch
Product Description:
Using quick connection terminal technology, Technology, Wiring does not require any tools, just insert
the hard wire into the wiring hole as required, and the double-stage pressure spring can be formed to press tightly on the top and bite the wire below. Even if The wiring state is uniform and neat, which ensures safety and greatly reduces the construction time. Out of the wire, it can also be reconnected. Improve the reliability of construction. To remove the cable, insert the screwdriver into the cable removal hole and pull it out.
The plastic part of the functional part is all made of high-quality polycarbonate, excellent heat and pressure resistance, solid and non-flammable, and does not deform in case of heat. The conductive parts of the switch are made of brass with high conductivity, the silver points are made of silver oxidation insulating contact with melting resistance, and the coil spring of the structure is forced to open and close to achieve higher conductive capacity and longer operation The service life is more than 40, 000 times.
As China's leading switch and socket supplier, Sager focuses on innovation and technological improvement. Through continuous investment in R&D, we continue to launch products that meet market demand. Our production base is equipped with advanced manufacturing equipment and automated production lines to ensure efficient, high-quality production. At the same time, we strictly follow the ISO9001 quality management system to ensure that every product meets international standards.
Technical Parameters
Description WD501 120 size 1 gang lighting switch
Panel Material ABS material imported
Inside Material All copper H62;Qsn6.5-0.1, silver contact AgCd15
Power/Voltage 10A, 250V
Wiring Method screw connection
Colour white, screwm Ivory or other colour as customization
Lifetime 8 years
Package 1pcs/plastic bag, 10pcs/inner colour box, 100PCS/CTN
Delivery time 35 days after getting confirmed order
Payment TT, LC
Sea port Ningbo/Shanghai
Moq 1000pcs
Outline size 70*120mm
Installation size 83.5
Material PC
Copper QSn5.6-0.1 H62 Hpb59
Switch specification
Lifetime ≥40000
Heat-resistant 100℃/1h
Insulation Resistance ≥5MΩ
Damp Resistance 48h>5MΩ
Temperature Raise ≤45K
Earthing Provision ≤0.05MΩ
Company Contact:
Contact Name: Cecilia
Company Name: Wenzhou Sager Electric Co., Ltd
Email:
Tel: 0577-62762075
Fax:
Street Address: No. 228, Weiwu Road,
Yueqing Economic Development Zone
Yueqing, Zhejiang
Website: https://www.sagerelec.com/
Member name: sagerelec
Country:
China
Member Since: 08 April 2025
Total Leads: 4 sagerelec Import Export Business Leads
Business focus: Switch Socket, Circuit Breaker, Track Socket, Photovoltaic Accessories, Railway Spare Parts, Exhaust Fan Series
