X-ray Phosphor Gd2o2s Tb For X-ray Imaging

Posted at: Offers to Sell and Export | Posted on: Tuesday 17 September 2019 8:52 am | Poster last visit: Tuesday 17 September 2019 |

Product Category: Main » Medical Equipment and Accessories and Supplies » Medical diagnostic imaging and nuclear medicine products » Medical diagnostic x ray products » Medical x ray intensifying screens » X-ray Phosphor Gd2o2s Tb For X-ray Imaging


Product Photo:

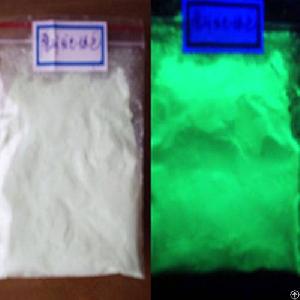

x ray phosphor gd2o2s tb imaging

Similar Products Catalog:
Products Photos Catalog Ray Phosphor Gd2o2s Photos Catalog

Product Description:

X-ray phosphor Gd2O2S:Tb for x-ray imaging

Gadolinium oxysulfide, Terbium-doped is known as a superior


X-ray powder phosphor with an energy efficiency of emission in the visible spectral region up to 0.2. Besides Gd2O2S: Tb has a high density with 7.5 g/cm3, and shows a not too long decay time,  ∼600μs. These properties make forming ceramic scintillators from this powder phosphor attractive. Ceramic scintillators are profitably employed in X-ray tomography.

Code No.: JUP-1243X

Synonyms: Gadolinium oxide sulfide (Gd2O2S), terbium-doped

Gadolinium oxysulfide, terbium-doped

Terbium-doped gadolinium oxysulfide

GOS phosphor; P43 phosphor

Superior X-ray powder phosphor

Formula: Gd2O2S:Tb

CAS No.: 68609-43-8

EINECS No.:

Purpose: It is light green powder. The material is emitted green light excitated by X ray. It is the material used as luminophore for manufacturing X ray intensifying screens, ceramic scintillators, CCD detector, projection CRTs, flat panel detectors, X-ray tomography and etc.

Technology Index:

1.No visible mechanical impurity is allowed inside the powder

2.No remains through screen 80 interval/cm

3.Density:7.5g/cm³

4.Median particle diameter:D50≤12μm

5.Relative luminosity: ≥100% of the standard sample

6.Color coordinate: x=0.322±0.005, y=0.507±0.005

7.Main peak wavelength of the emitting spectrum:545nm
