X8000 Series Load Modules

Posted at: Offers to Sell and Export | Posted on: Tue 14 Aug, 2018 5:53 am | Product Category: Cable network tester [14]

x8000 load modules
Products Photos CatalogX8000 Load Modules Photos Catalog

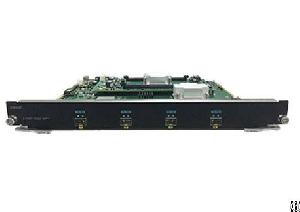

X8000 Series Load Modules

Network Testing Equipment


Network Test Modules

X8000 series test modules

are high-performance professional load modules running on TestStorm series and support all the features of TestStorm platform. X6000 Series deliver complete wire-speed traffic test and protocol emulation for network equipment and network systems to meet the testing requirements in each stage of R & D, experiment and qualit

X8000 series test modules are high-performance professional load modules running on TestStorm series and support all the features of TestStorm platform. X6000 Series deliver complete wire-speed traffic test and protocol emulation for network equipment and network systems to meet the testing requirements in each stage of R & D, experiment and quality control.

X8000 series test modules support up to 8 x 10G COMBO ports and support Cross-chassis synchronizing to provide large-scale protocol emulation, performance test and mass traffic stress test of Layer 2-7 network device.

X8000 series modules support TeleExplorer, TeleAPP to meet different test needs. TeleExplorer is a standard test suite providing L2-7 test functions with powerful and flexible configuration. TeleAPP is a test suite to provide automated test of RFC2544 /2889/3918 with easy-to-use configuration and necessary test report output. X6000 also support TCL and API to meet customized testing requirements.

Specifications

Model X8004F X8002F

Port Number 4 * 10G 2 * 10G

Port Rate SFP+:10G SFP+:10G

Physical Status Indicators: Tx/Rx

Weight: 0.5kg

Size: 271mm x 35.5mm x 180mm†

Peak power requirement: 100W Max

Traffic Generation Traffic generating based on port and stream, per port have 256 different streams†

Each stream provide up to 4 saltus step domain with mode of increase, decrease and random

Accurate data rate regulation based on port and stream, support dynamic data rate regulation based on port

Each stream is capable of generating packets of Layer2, IPv4, IPv6, TCP, UDP, TCP-IPv6, UDP-IPv6, ICMPv4, ICMPv6, IGMPv2, ARP, Pause, Goose and custom

Each stream support multiple levels of VLAN and MPLS

Signature block is optional in each stream

Each stream supports user-defined packets and packet length from 60B to 16KB†

Payload generation mode: Cycle, Incremented, Random

Traffic Statistics Statistics results can be displayed in the form of data table and chart

Each port can receive up to 1024 streams

Traffic statistics based on streams:†

TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency†

Traffic statistics based on ports:

TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count (filter patterns include VLAN, MPLS, PPPOE, ARP, IPv4, IPv6, TCP, UDP)

Traffic Capture Each port provides 512M bits capture buffer

RX data frame capture

TX/RX control frame capture

Frame capture based on filter templet

Decode hundreds of protocols

Support captured frame search according to specific conditions

Intuitive display of framesí features such as source IP address, destination IP address, type of protocol and etc.

Protocol Emulation Layer 2-3 Protocol Emulation

Integrated IPv4 and IPv6 dual stack

Protocol emulation on RIPv2, RIPng, OSPFv2, OSPFv3, ISISv4, ISISv6, BGP4, PPPoE Client, DHCP Client, IGMPv2, IGMPv3, GMRP, 802.1x, LDP, 802.3ah

Layer 4-7 Protocol Emulation

Data Each port supports wire-speed traffic generation

TCP connections per second: 2 Million

TCP concurrent connections:32 Million

Support HTTP

Support FTP

Support comprehensive multilayer testing though Layer 2 ~ 7

Software Support TeleExplorer test system†

TeleAPP - Test suit of RFC 2544/RFC 2889/RFC3918

Chassis Available TestStorm200

Others Easy-to-use graphical user interface

Support TCL API for customizing tests

More information please view here.
