50w-75w laser diode cooler manufacturer

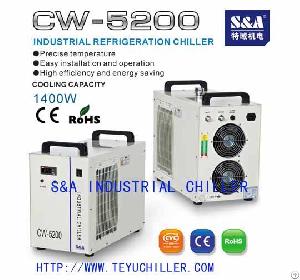

CW-5200 laser diode cooler is producted by Guangzhou Teyu Electromechanical
S&A CW-5200 is refrigeration type laser cooler of 1400W cooling capacity. It is used to cool a single 50W-75W laser diode marking machine, . It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air.
CW5200 laser diode cooler specfications:
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically
switch to appropriate operating temperature.
CW-5200AG: applied to cool a single 130W CO2 laser tube
CW-5200AH: applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes.
CW-5200AI: applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube;
Optional: CW-5202 dual water inlet and outlet series; heat booster; water filter.
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-134a / R-410a
Pump power: 0.03KW/0.05KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 26Kgs; G.W: 29Kgs;
Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
About S&A Brand
TEYU produces more than 60000 units of industrial chillers by year, we always insist on”Quality First” in design and production.
“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%
