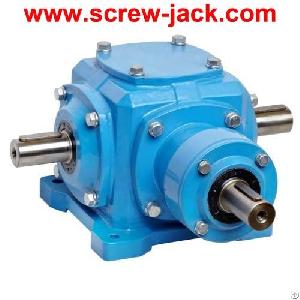

90 deg gearbox, High torque bevel gearbox, 3 output gearboxes, sewage auger gear drive speed reducer
1. Spiral bevel gears drive, right angle assembly.
2. Used to transmit rotary motion, mechanical power and torque.
3. High efficiency bevel gearbox up to 98%.
4. Gear reduction ratio 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1, Customized special gear ratios.
5. Input power maximum 335 Kw, high torque maximum 5713 N.m, input speed and output speed maximum 1500 Rpm, high speed gearbox needs, contact Jacton engineers.
6. Drive input shaft and output shaft diameter 15 mm, 19 mm, 25 mm, 32 mm, 40 mm, 45 mm, 50 mm, 60 mm, 72 mm, 85 mm, Customized other shafts diameter.
7. 42 types drive shaft arrangements and rotating directions, drive shafts can be rotated in both forward and reverse direction with clockwise and counterclockwise rotation directions.
8. Soild shaft, hollow shaft and motor flange adapter are available, customized multiple spline keys.
9. horizontal mounting, overhung mounting or wall mounting are available. Special installation, contact Jacton.
10. (2-way) 2 shaft gearbox, (3-way) 3 shaft gearbox, (4-way) 4 shaft gearbox are available.
90 deg gearbox, High torque bevel gearbox, 3 output gearboxes, sewage auger gear drive speed reducer Equivalent to Taiwan HUANG YIH HLG miter gearbox, LI-MING TH miter gearbox, YONGKUN TNT miter gearbox, PEEI GM miter gearbox, Longgoung LG miter gearbox, Korea SAMYANG SMB miter gearbox, Japan TSUBAKI ED miter bevel gearbox and NISSEI COMPASS KNB or KNC miter bevel gearbox, America THOMSON KRG bevel gearbox, HUB CITY M bevel gearbox, United Kingdom POWERJACKS Neeter Drive P bevel gearbox, KELSTON G bevel gearbox, Germany PFAFF KV-KA bevel gearbox, INKOMA KL bevel gearbox, ZZ-ANTRIEBE K bevel gearbox, GROB V bevel gearbox, Italy UNIMEC RS bevel gearbox.
90 deg gearbox, High torque bevel gearbox, 3 output gearboxes, sewage auger gear drive speed reducer Application in printing press, plastic extruder, sewage auger, bonding equipment, metering auger, sewage agitator, newspaper conveyor, bottling equipment, material handling, web finishing, paper conveying, conveyor, cardboard box equipment, packaging, satellite dish antennas, gate valve actuators, food processing, robotics, rubber processing, wrapping machine, solar panel, commercial mower, street sweeper, dual steering, bulkhead door opener, scissor lift, vertical pump drive, sand spreader, residential mower, car wash curtain, snow blower, mining equipment, crane, agricultural, grain wagon, harvester, forage harvester, manure spreader, fertilizer spreader, business form press, feed screw drive, sewage conveyor, collating machinery, mixing equipment, conveyor drive, screw jack system, film processor and pottle packaging equipment. Whatever your goal is to blend, blow, bottle, crank, cut, convey or the task is to press, propel or raise, Jacton gearbox is welcomed and ideal power transmission solution with all these industries.
