Lpce-3 Lms-7000vis High Accuracy Compact Photometer With Spectrometer And Sphere For Led Lumen Cct

Posted at: Offers to Sell and Export | Posted on: Monday 28 December 2015 7:17 am | Poster last visit: Friday 19 April 2019 |

Product Category: Main » Laboratory and Measuring and Observing and Testing Equipment » Laboratory and scientific equipment » Laboratory botanical equipment and accessories » Photosynthesis measurement apparatus » Lpce-3 Lms-7000vis High Accuracy Compact Photometer With Spectrometer And Sphere For Led Lumen Cct

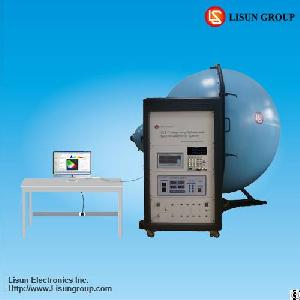

Product Photo:

lpce 3 lms 7000vis accuracy compact photometer spectrometer sphere led lumen cct

Similar Products Catalog:
Products Photos Catalog Lpce Lms 7000vis Photos Catalog

Product Description:

LPCE-3(LMS-7000VIS) is CCD Spectroradiometer & Integrating Sphere Test System, it is suitable

for


photometric and colorimetric measurement of luminaries such as LEDs, LED

luminaires, Energy-saving lamps, Fluorescent lamps, HID lamps (high voltage sodium

lamps and high voltage mercury lamps) and CCFL. The measured data meets the

requirements of CIE, EN and LM-79 clause 9.1 for the measurement of photometry and

colorimetry.

System Configuration:

CCD Spectroradiometer (LMS-7000VIS), Optical Fiber (CFO-1.5M), Digital Power Meter (LS2008R), DC Power Source (DC3003S), AC Power Source (LSP-500VAS), Integrating Sphere (IS-*MA-CASE and IS-0.3M), Standard Light Source (SLS-50W and SLS-10W), Auxiliary Lamp (RLS-50W)

Measures:

• Colorimetric: Chromaticity coordinates, CCT, Color Ratio, Peak Wavelength, Half Bandwidth, Dominant Wavelength, Color Purity, CRI, Spectrum Test

• Photometric: Luminous Flux, Luminous Efficiency, Radiant Power, Pupil Flux, Pupil Flux Efficiency, Pupil Factor, Cirtopic Flux

• Electrical: Voltage, Current, Power, Power Factor

Specification:

• Spectral Range Wavelength: 380nm~800nm (200~1050nm can be option)

• Spectral Wavelength Accuracy: ±0.5nm Wavelength Reproducibility: ±0.5nm

• Sample Scanning Steps: ±0.1nm

• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003

• Correlated Color Temperature CCT: 1, 500K~25, 000K. CCT Accuracy: ±0.5%

• Color Rendering Index Range: 0~100.0, Accuracy: ±(0.3%rd±0.3)

• Photometric linear: ±0.5%

• Stray light: <0.015%(600nm) and <0.03%(435nm)

• Time of integration: 0.1mS~20S



Company Contact:

No member photo
Contact Name: James Peng
Company Name: Lisun Electronics (shanghai) Co., Ltd.
Email: Email
Tel: +86-021-51083341
Fax: +86-021-51083342
Street Address: 113-114, No.1
Building, Nanxiang Zhidi Industry
Park, No.1101, Huyi Road, Jiading
District, Shanghai
Shanghai, Shanghai 201803
China
Website: https://www.lisungroup.com
Member name: lisungroup
Country: China-CN China
Member Since: 28 December 2015
Total Leads: 13 lisungroup Import Export Business Leads
Business focus: Goniophotometer, Spectrophotometer, Integrating Sphere, Photometer Colorimeter, Led Test Instruments, Cfl Test Instruments, Emc Testing
