Submersible Slurry Pump For Decanter Centrifuge In Solids Control System

Posted at: Offers to Sell and Export | Posted on: Thursday 10 August 2017 7:16 am | Poster last visit: Thursday 4 January 2018 |

Product Category: Main » Mining and Well Drilling Machinery and Accessories » Oil and gas drilling and exploration equipment » Drilling and workover rigs and equipment » Mud cleaning equipment » Submersible Slurry Pump For Decanter Centrifuge In Solids Control System

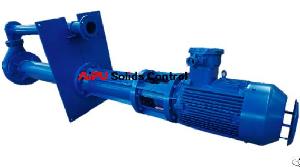

Product Photo:

submersible slurry pump decanter centrifuge solids control system

Similar Products Catalog:
Products Photos Catalog Submersible Slurry Photos Catalog

Product Description:

Submersible slurry pump is one kind of centrifugal pump. It is vertical type. In drilling fluid system



or solids control system it is used as feeding pump for decanter centrifuge

The submersible slurry pump consisting impeller, pump case, pump shaft, bearing, driven power, supporting frame, coupler, shaft sleeve, shaft seal, and so on. Usually, we use the electrical motor drive pump. The popular pump flow rate is from 30m³/h to 200m³/h.

Submersible slurry pump normally used for feeding shale shaker for CBM, HDD or other drilling industry. It is vertical single stage and single suction system and made of abrasion-resistant alloy. The standard length of pump 1.3m but can be customized

Submersible Slurry Pump Technical Parameters

Model Flow Rate Head(m) Speed(RPM) Efficiency(%) Power(kw)

m³/h L/s

Ap50yz20-18 20 5.6 18 1430 42 3

Ap50yz25-12 30 8.3 11 1430 38.2 3

Ap50yz50-20 40 11 22 1440 41 7.5

Ap65yz50-12 50 13.8 12 1440 55.9 5.5

Ap80yz80-20 80 22.2 21 1460 55 11

Ap80yz80-20a 90 25 15.6 1460 51 11

Ap100yz100-30a 110 30.6 24 1470 54 18.5

Ap100yz100-30 120 33.3 28 1470 56 22

Ap100yz160-38 160 44.4 39 1480 52 45

Ap150yz250-40b 200 55.6 25 1480 49 37

Ap150yz250-40a 240 66.7 31 1480 50 45

Ap150yz280-20 320 88.9 17 980 57 37
