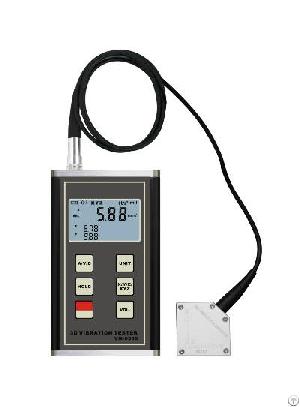

Vibration Meter Vm-6380 3d
Posted at: Offers to Sell and Export | Posted on: Monday 3 June 2013 2:37 am | Poster last visit: Tuesday 20 May 2014 |
Product Description:
Application: used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Is
pecifically designed for present measuring various mechanical vibration. So as to provde the data for the quality control, run time and equipment upkeep.
Iuse the high-performance acceleration meter, realize the repetitiveness and accurate measurement.
It has the function of testing axle bearing situation.
Specifications
Vibration Sensor:3-Axis Piezoelectric accelerometer
Display: 4 digit LCD backlit
Axial Vibration: any one axis of X, Y, Z or 3 axes of XYZ
Measurement Range:
Velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
Acceleration : 0.1-400.0 m/s2 0.3-1312 ft/s2 0.0-40g equivalent peak
Displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy: 5% of reading + 2 digits
Metric/ Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale
(load resistance: above 10k)
With Max. value hold and low battery indication
PC interface: RS232C or Bluetooth interface
Cable and software is not included)
Power supply: 2x1.5v AA size (UM-3) batteries
Power off : Manual off at any time or auto power off is enabled by user
Operating conditions:
Temperature : 0-50 ℃
Humidity : below 95% RH
Dimensions: 124x62x30mm/4.9x2.4x1.2 inch
Weight: 120g (not including batteries)
Accessories included :
Powerful rare earth magnet 1 pc.
Accelerometer 1 pc.
Stinger probe (Cone) 1 pc.
Stinger probe (Ball) 1 pc.
Carrying case 1 pc.
Operation manual 1 pc.
Optional accessories: Headphones for use as electronic stethoscope
Cable and software for RS232C
Company Contact:
Contact Name: Annie Wu
Company Name: Guangzhou Landtek Instruments Co., Ltd
Email:
Tel: 86-020-81609313
Fax: 86-020-81509478
Street Address: Flat C, Kengkou
Electronic Base, No.9 Huaxi Rd.,
Fangcun, Guangzhou, China
Website: https://www.landteknet.com
Member name: landtekwyl
Country: China
Member Since: 31 July 2012
Total Leads: 69 landtekwyl Import Export Business Leads
Business focus: Instrument, Meter, Gauge
Chat:
