Bipolar Slewing Drives Designed To Save Installation Space In Equipment

Posted at: Offers to Sell and Export | Posted on: Thursday 20 October 2022 9:12 am | Poster last visit: Saturday 13 July 2024 |

Product Category: Main » Manufacturing Components and Supplies » Bearings and bushings and wheels and gears » Gears » Spur gears » Bipolar Slewing Drives Designed To Save Installation Space In Equipment

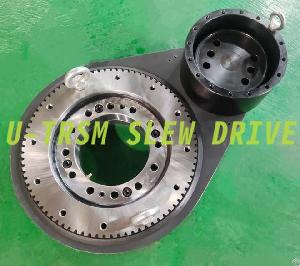

Product Photo:

bipolar slewing drives save installation space equipment

Similar Products Catalog:
Products Photos Catalog Bipolar Slewing Drives Photos Catalog

Product Description:

Model: 2-S-I-O-0229

Type: Bipolar spur gear slewing drive


Slewing drive gear ratio: 5.47

Rated output

torque: 2660N.M

Rotation center diameter: 282mm

Total height with adapter flange: 154mm

Gear backlash ≤0.30mm

2-S-I-O-0229 bipolar spur gear slewing drives, used in special vehicles, customers require the slewing drives can withstand 3 tons load, torque 2068Nm, there must be a certain distance between the hydraulic motors and the rotation centers.

According to the customersí needs, the engineers of U-TRSM have designed this type of special bipolar spur gear slewing drives.

Compared with the general spur gear slewing drives, this type of bipolar slewing drives added a secondary gear, which increase the distances between the customersí motors and the slewing drivesí rotation centers, effectively increasing the space for installation of equipment.

The bipolar spur gear slewing drives are especially suitable for occasions where the installation spaces are limited. Due to the limited installation spaces of the rotary turntables, the sizes of the input ends are large, and there are interferences with the turntables. In this case, the bipolar slewing drives show their advantages. Compared with the ordinary single gear spur gear slewing drives, the bipolar slewing drives increase the installation spaces, reduce the costs and can better meet the needs of use.

U-TRSM has very rich experience in the design, production, commissioning and assembly of bipolar spur gear slewing drives, has designed various types of non-standard custom rotary reducers for customers all year round, which has been recognized by customers.
