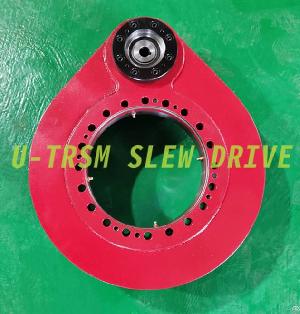

Spur Gear Slewing Drive S-i-o-0311 Slew Drive Suitable For Low Load In Automated Machinery
Posted at: Offers to Sell and Export | Posted on: Sunday 3 April 2022 12:21 pm | Poster last visit: Monday 22 April 2024 |
Product Category: Main
» Commercial and Military and Private Vehicles and their Accessories and Components
» Transportation components and systems
» Drivetrain systems
» Drive shafts
» Spur Gear Slewing Drive S-i-o-0311 Slew Drive Suitable For Low Load In Automated Machinery
Product Description:
Model: S-I-O-0311
Type: spur gear slewing drive
Slewing drive gear ratio: 6.00
Rated output torque:
2.7KN.M
Rotation center diameter: 311mm
Total height with adapter flange: 110mm
Gear backlash ≤0.15mm
The geared slewing drive S-I-O-0311 are external gear slewing drive used in automated machinery and equipment. The customer needs to install them vertically. The load of the slewing drives in equipment is very small, the speed is very slow and the torque is also small, but slewing drive require high rotary accuracy. According to the customer’s use requirements, after comprehensive consideration, the engineers of Unique Transmission recommended this type of slewing drives to customer.
The slewing bearing teeth inside the slewing drives are not quenched, because the deformation of the outer ring of the light series slewing bearing teeth is relatively large during quenching, although the end face runout and radial runout of the slewing bearing can be controlled to an ideal value through subsequent processing, but the deformation of the teeth after quenching can only be corrected by grinding teeth, however the cost of grinding teeth is relatively high, also can achieve a good rotary accuracy, but some customers do not need such high accuracy.
At this time, according to the specific working conditions of customer mechanical equipment, the gear rings can be tempered and without quenching. In this way, it is only necessary to control the precision of the tooth machining to ensure the rotation accuracy of the slewing drives, without considering the quenching deformation of the teeth.
In the design and selection process of the slewing drive, it is necessary to comprehensively consider the specific working conditions. Only by considering the problems comprehensively, we can provide customers with the best solution, choose cost-effective products for customers and achieve a win-win situation for both parties.
Company Contact:
Contact Name: Guoguo
Company Name: Unique Transmission Equipment（luoyang）co., Ltd
Email:
/
Tel: +86-379-64915181
Fax:
Street Address: No.22 Binhe Road,
New & High Tech Industry
Development Zone, Luoyang Area Of
China (henan) Pilot Free Trade Zone,
471000
Website: https://en.u-transmission.com
Member name: UniqueTransmission
Country:
China
Member Since: 16 June 2021
Total Leads: 176 UniqueTransmission Import Export Business Leads
Business focus: Slew Drive, Slewing Ring
Chat:
Verify: Safe Import Export Tips
Type: spur gear slewing drive
Slewing drive gear ratio: 6.00
Rated output torque:
2.7KN.M
Rotation center diameter: 311mm
Total height with adapter flange: 110mm
Gear backlash ≤0.15mm
The geared slewing drive S-I-O-0311 are external gear slewing drive used in automated machinery and equipment. The customer needs to install them vertically. The load of the slewing drives in equipment is very small, the speed is very slow and the torque is also small, but slewing drive require high rotary accuracy. According to the customer’s use requirements, after comprehensive consideration, the engineers of Unique Transmission recommended this type of slewing drives to customer.
The slewing bearing teeth inside the slewing drives are not quenched, because the deformation of the outer ring of the light series slewing bearing teeth is relatively large during quenching, although the end face runout and radial runout of the slewing bearing can be controlled to an ideal value through subsequent processing, but the deformation of the teeth after quenching can only be corrected by grinding teeth, however the cost of grinding teeth is relatively high, also can achieve a good rotary accuracy, but some customers do not need such high accuracy.
At this time, according to the specific working conditions of customer mechanical equipment, the gear rings can be tempered and without quenching. In this way, it is only necessary to control the precision of the tooth machining to ensure the rotation accuracy of the slewing drives, without considering the quenching deformation of the teeth.
In the design and selection process of the slewing drive, it is necessary to comprehensively consider the specific working conditions. Only by considering the problems comprehensively, we can provide customers with the best solution, choose cost-effective products for customers and achieve a win-win situation for both parties.
