Stepper Drives
Posted at: Offers to Sell and Export | Posted on: Wednesday 17 December 2014 12:11 pm | Poster last visit: Friday 2 January 2015 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Batteries and generators and kinetic power transmission
» Kinetic power transmission
» Step drive or stepper drive or step indexer
» Stepper Drives
Product Description:

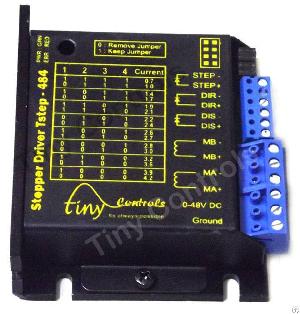

Stepping motor drive- micro-stepping hybrid bipolar
An accurate compact industrial based step motor
drive for steady CNC applications and motor controlling jobs at fair prices...
By chopping the steps of a basic stepper motor, micro-stepping is achieved. So just by controlling current in motor windings, micro-stepping can be accomplished by generating number of steps between full Step positions. Tstep-484 bipolar drive can run the motors running on 20 V- 48 V rated voltage and 4A rated current.
Features of stepper driver Tstep-484:
1. A perfect micro-stepping drive by using sinusoidal current for an accurate motion.
2. Tstep-484 can drive motor with which can run on 20 V-48 V rated voltage and 4A rated current.
3. Jumper selectable drive current for driving range of stepper motor.
4. Opto-isolated step and direction inputs and error outputs.
5. When the motor is stopped, there is less motor heating with automatic current reductions.
6. Drive is very compact and less installation space is required.
7. Maximum torque is achieved at high rotational speed by automatic current compensation usage.
8. Smooth motion without resonance.
9. The drive is versatile and can be used with a range of stepping motors.
10. Protection from short circuit.
11. You can use drive with 4, 6 and 8 lead steppers in bipolar series, in half coil or parallel configurations.
12. Made in India.
Stepper Drive Specification
Series Model : Tstep-484
Rated Voltage : 18 V-48 V
Rated Current : Jumper selectable 0.7 A to 4.2 A
Micro-stepping : YES
Idle Current Reduction : YES
Short Circuit Protection : YES
Isolated Step/Dir Inputs : YES
Company Contact:
Contact Name: Anil Jangra
Company Name: Tiny Controls Pvt Ptd
Email:
Tel: 9911193210
Fax:
Street Address: C-55, Nishat Park,
Kakrola
New Delhi, Delhi 110078
India
Website: http://www.tinycontrols.com
Member name: tinycontrols
Country: India
Member Since: 17 December 2014
Total Leads: 37 tinycontrols Import Export Business Leads
Business focus: Stepper Motor, Motion Controllers, Power Supplie, Pulse Generators, Controller Panels, High Spee Spindles, Stepper Drivers, Couplings
